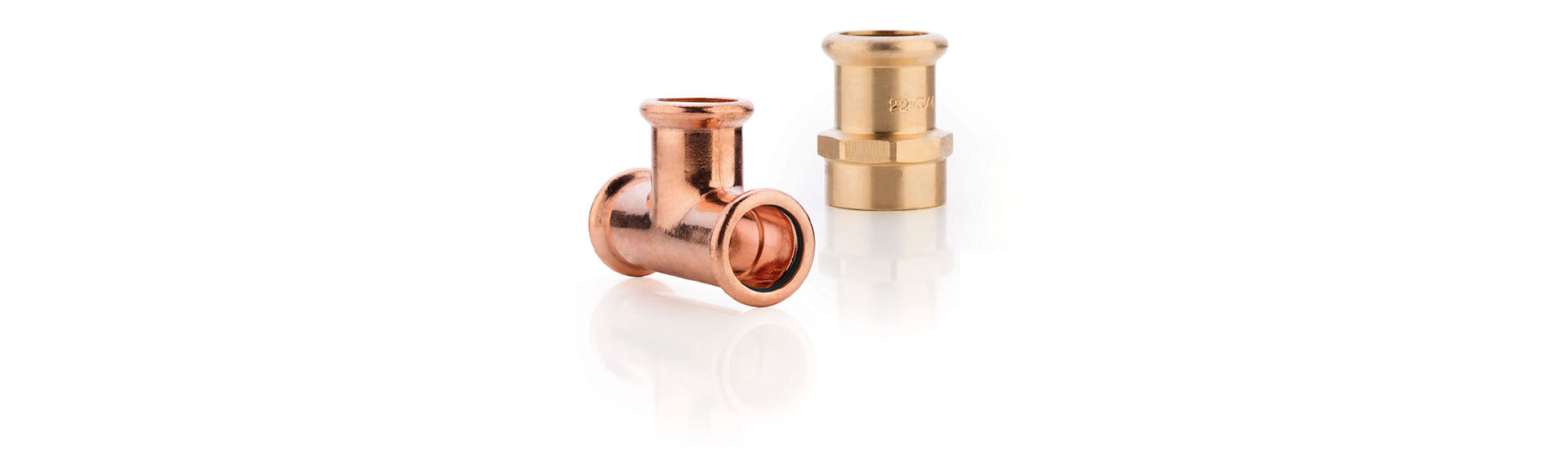

PUREYPRESS M, is a series of copper press fittings available in the dimensional range between 12 and 54 mm and suitable for water installations. The fittings feature a M-type pressing profile.
The black EPDM gasket is characterized by high chemical-physical performances to satisfy the requirements of hygiene and purity, typical of drinking water applications. The material of the gasket complies with EN 681-1 standard (water applications).
Mixed connection fittings to other systems are made using bronze threaded parts with press ends. The threads comply with UNI EN 10226-1 standard.
|M-Profile||From 12 to 54 mm||Copper/Brass|
|MATERIAL||COLOUR||T MIN / T MAX|
|EPDM||Black||-10℃ to +110 ℃|
|HNBR||Yellow||-40℃ +70 ℃|
|FKM||Red||-20℃ +170 ℃|
Safety: it is possible to spot the fluid leakage during the test of the installation if the fitting is not pressed.
Ideal system for the distribution of drinking water.
Easy and quick installation, typical of pressing technique.
Corrosion resistance, hygiene, and reliability.
Gaskets can be fitted without welding, eliminating the risk of fire in more hazardous situations (working in older buildings, furnished rooms, etc.).
No need for dangerous gas pumps or containers, eliminating the need to make the connections required by law.
Elimination of all welding materials, with inevitable cost benefits.
Junctions free from burning or rings with an excellent immediate visual impact.
Integrity of pipe insulation thanks to the absence of heat sources.
Increased wall thickness to ensure the reliability and durability of junctions and fittings.
Secure pipe-to-fitting connection thanks to the cylindrical guide on fittings both in front of and behind the O-ring.
Polygon-shaped press designed to ensure maximum resistance to traction and torsion stresses.
Precision cleaning of internal surfaces to eliminate oily residues due to processing and to ensure protection against rust under all operating conditions.
|Milwaukee||M12™ FORCE LOGIC™ Press Tool||DN15-32||12-35mm||1/2”- 1 1/4”|
|Milwaukee||M18™ FORCE LOGIC™ Press Tool||DN15-100||12-108mm||1/2”-4”|
|Ridgid||RP210||DN15-32||N/A||1/2”- 1 1/4”|
|Viega||Picco||DN15-25||12-35mm||1/2”- 1 1/4”|
|Viega||Pressgun 4B 2486||DN15-100||64-108mmA||1/2”-4”|
|REMS||Mini Press 578001||DN15-25||12-35mm||1/2”- 1 1/4”|
|REMS||Akku Press 571004||DN15-100||12-108mm||1/2”-4”|

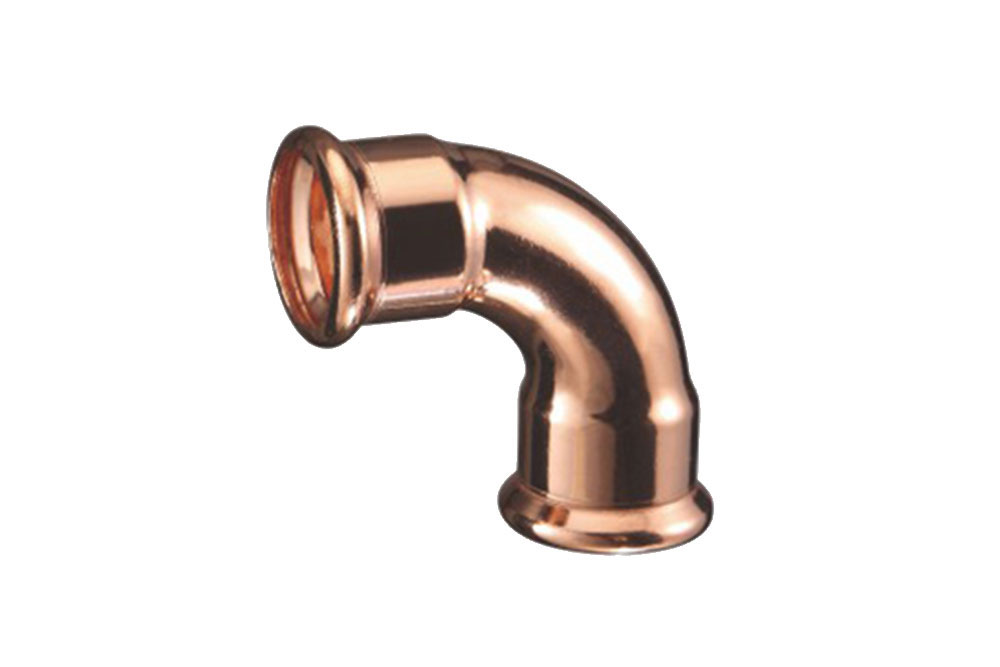

9002 Copper FF 90° elbow
9001 Copper Press MF 90° elbow
9040 Copper Press MF 45° elbow
9041 Copper Press FF 45° elbow
9085 Copper Press FF full crossover
9086 Copper Press MF partial crossover
9130 Copper Press FFF tee
9131 Copper Press FFF reducing tee
9240 Copper Press FF reducing coupling
9243 Copper Press MF reducer
9270 Copper Press FF coupling
9271 Copper Press FF slip coupling
9301 Copper Press F end cap
